oikos xs
(512) 931-1962

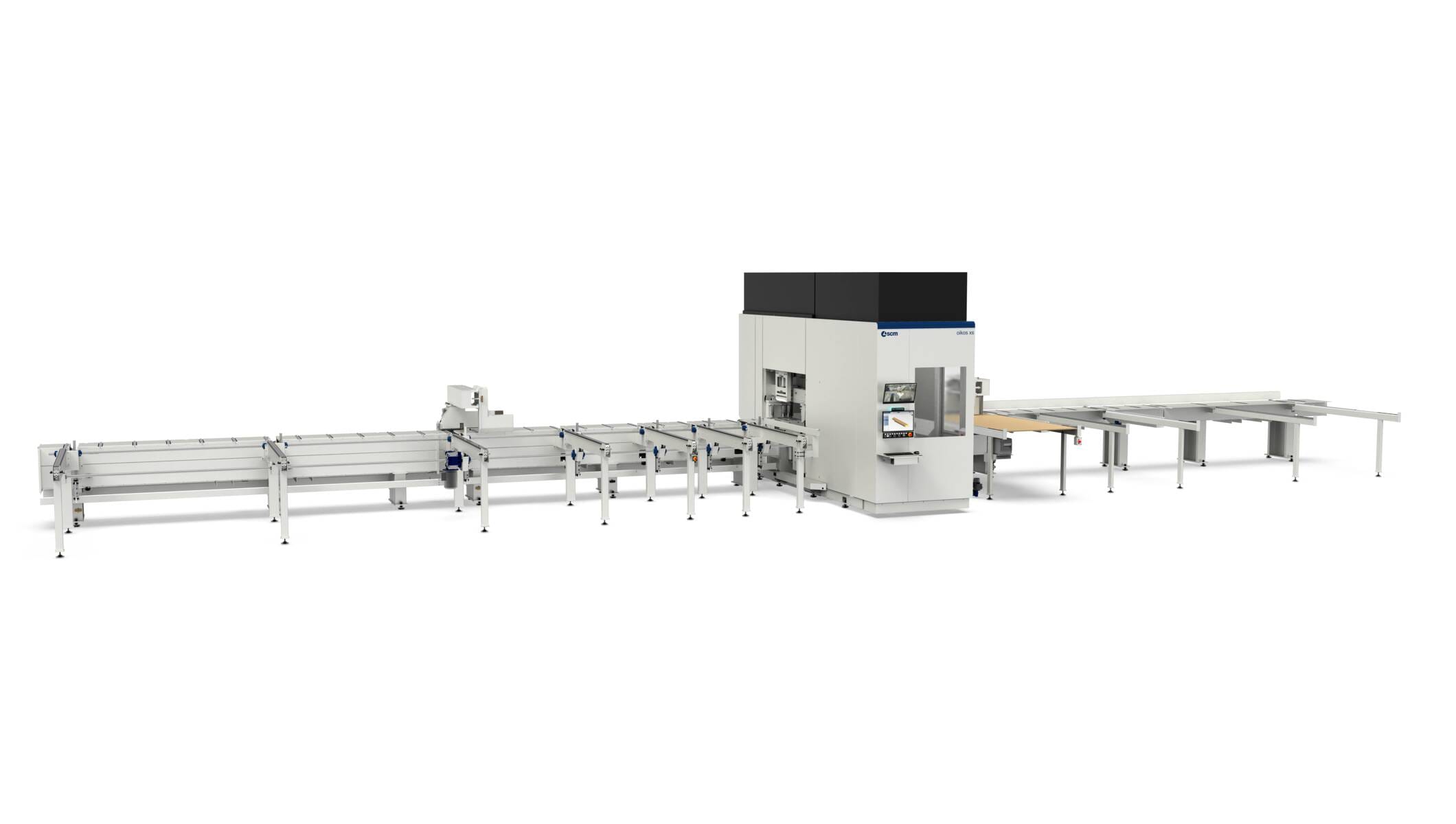

oikos xs CNC machining centers are distinguished by their high execution speed and advanced configurability. Designed for the production of laminated and solid wood structural components, they are particularly suitable for processing simple elements, such as those for prefabricated walls, as well as more complex structures, such as those for roofs.
WIDE CONFIGURABILITY

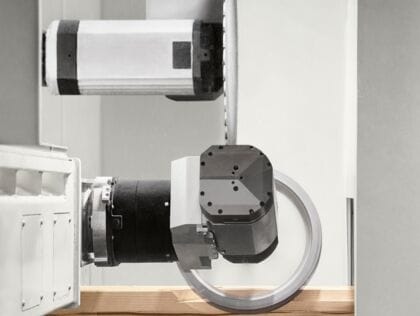

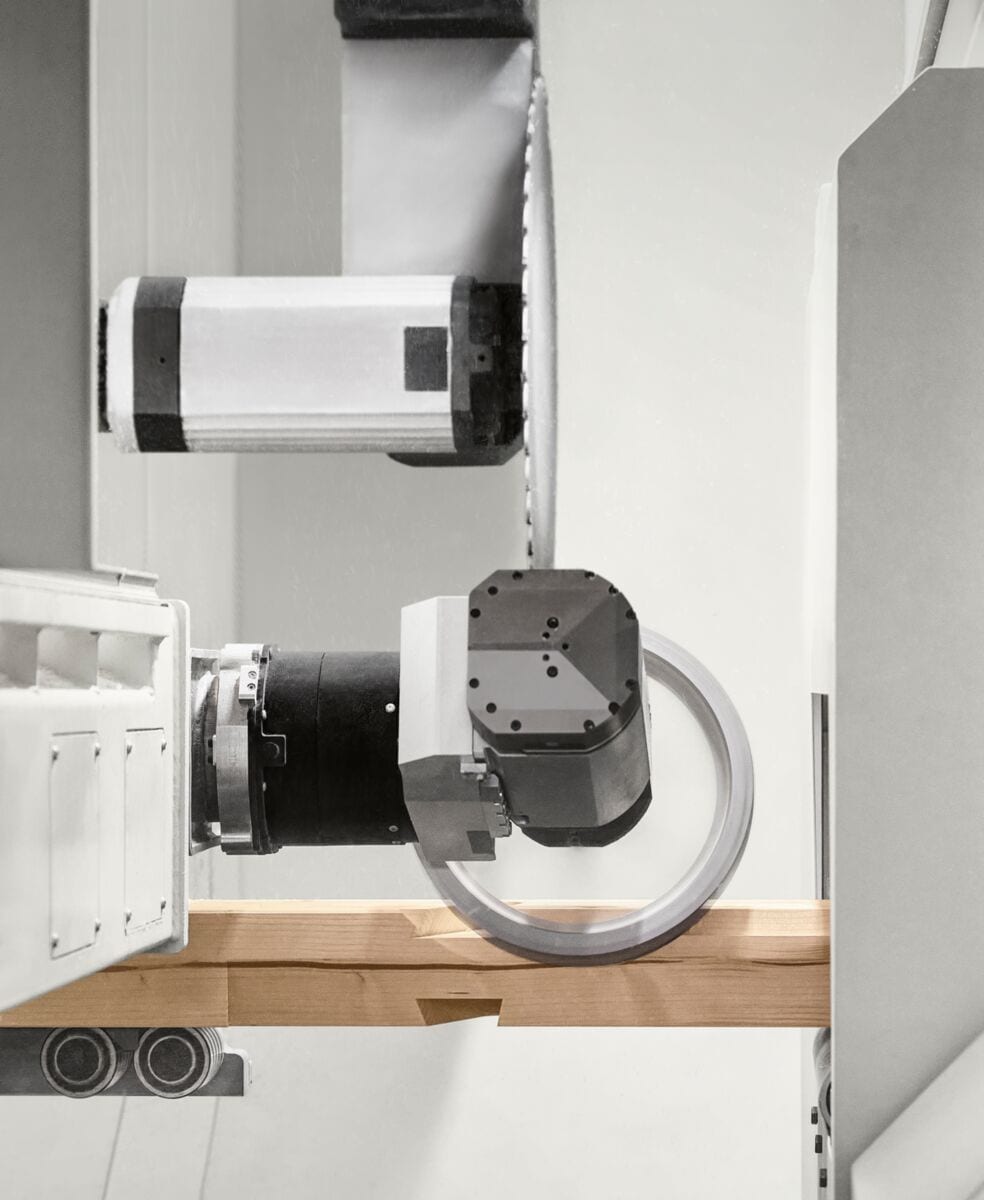

The machining center can be configured with various operating units, whose combined movements help minimize downtime caused by axis repositioning. The main machining units available are the Flex-5 unit and the Revolver unit, both 5-axis, ideal for a wide range of applications.
SPEED OF EXECUTION
The structure has been specifically designed to allow a workpiece feed speed of up to 3 m/sec. The equipment with the revolver unit ensures that all tools are always ready for use, also thanks to the strategic arrangement of the units. The revolver can vary the rotation speed for each tool, ensuring optimal use and, consequently, greater durability, thus guaranteeing a high-quality finish.
COVERAGE OF THE SIX FACES

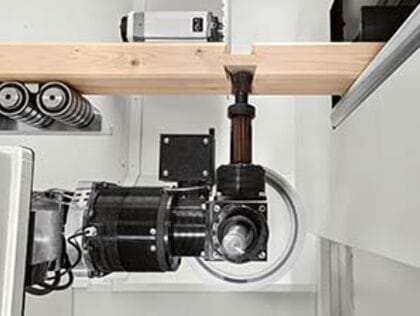

Guaranteed machining on all six faces of the workpiece, regardless of the main operating unit used. The 5-axis unit Flex-5, equipped with an automatic tool magazine compatible with tools and aggregates, offers extensive operational flexibility, enabling the execution of complex projects that require machining on all faces of the workpiece.
PROGRAMMING FREEDOM

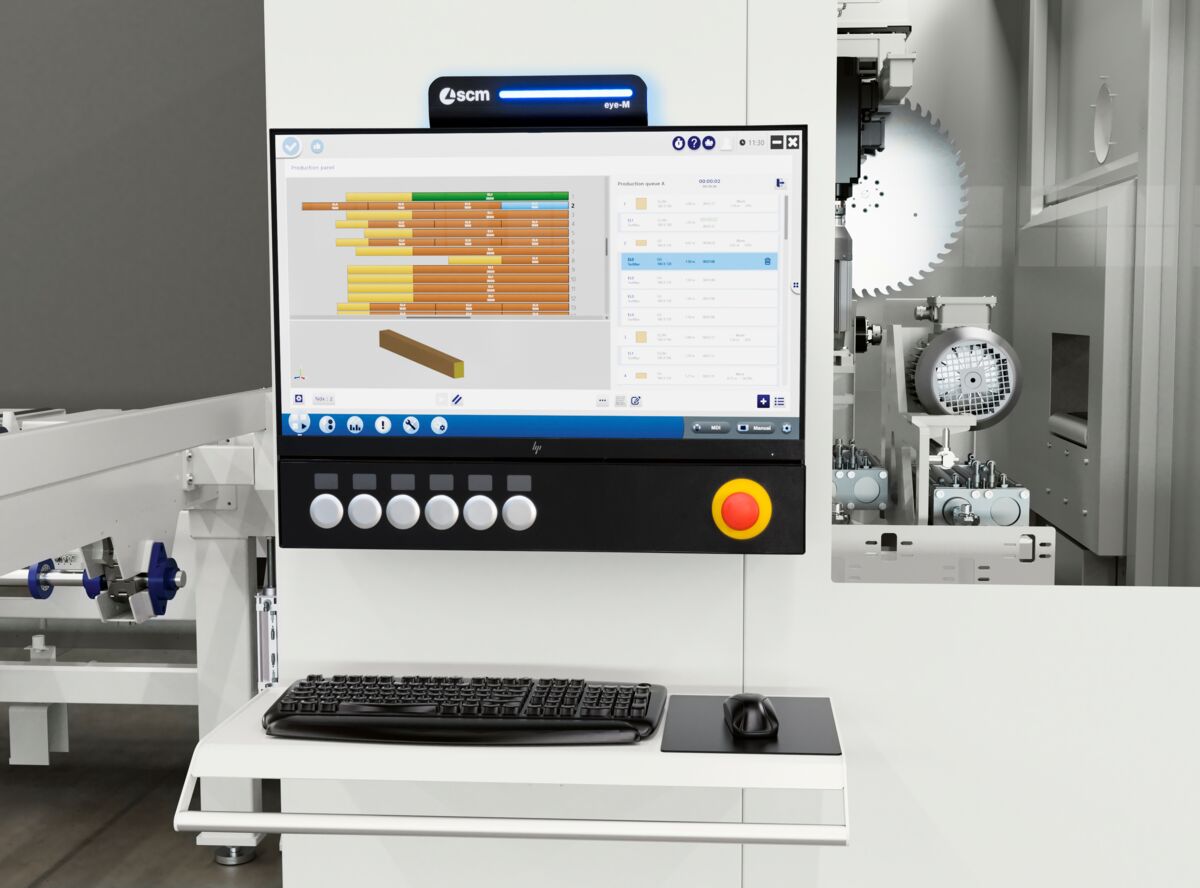

Maestro beam&wall is the proprietary SCM software compatible with the most popular CADs design systems in the timber building industry. It allows programming both in the office and directly on the machine. Thanks to the new HMI software Maestro active beam&wall, control and optimization of the production flow are even simpler and more intuitive.
| oikos xs 450 | oikos xs 650 | ||
| Workpiece dimensions | |||
| Length max. | m | 6 - 10 - 13.5 - 16 | 6 - 10 - 13.5 - 16 |
| Length min. | mm | 1300 | 1300 |
| Cross-section max. | mm | 450 x 240 | 650 x 310 |
| Cross-section min. | mm | 40 x 20 | 40 x 20 |
| Weight max. (for the automatic loading) | kg | 800 | 1500 |
| Operating units | |||
| Sawblade unit 10.6 kW (S1) | - | yes | yes |
| Flex-5 unit 12.8 kW (S1) | - | no | yes |
| Revolver unit 10 kW (S1) | - | yes | yes |
| Vertical routing unit 8.8 kW (S1) | - | yes | yes |
| Vertical drilling unit 1.5 kW (S1) | - | yes | yes |
| Horizontal drilling unit 1.5 kW (S1) | - | yes | yes |
| Horizontal mortise chain unit 2.2 kW (S1) | - | yes | yes |
