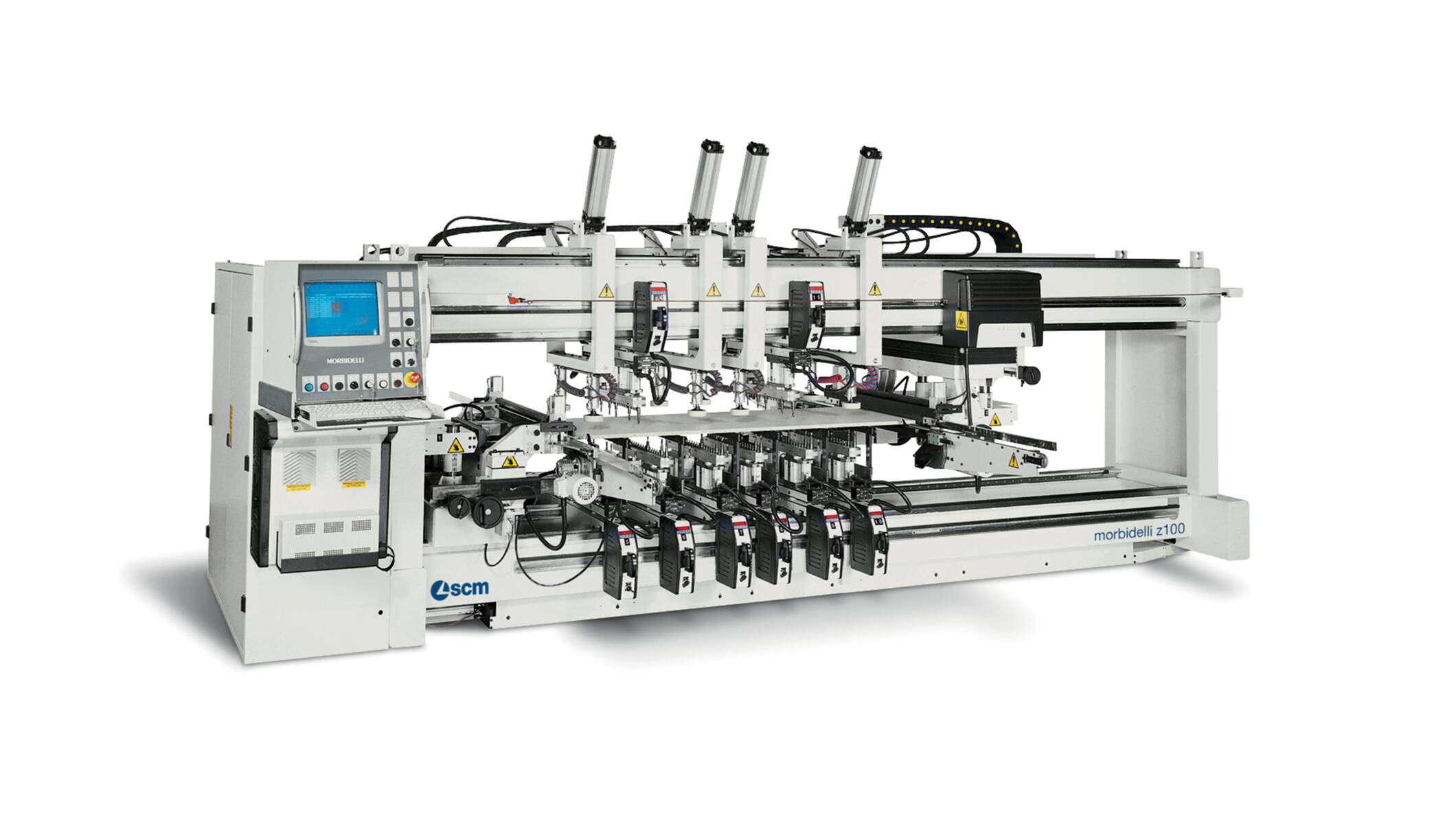

morbidelli z100
(512) 931-1962
Automatic drilling machine for making furniture, designed for large companies and for large production batches.
HIGH QUALITY FINISH
Absolute precision thanks to the sturdy single-body mechanical structure guaranteeing lasting absence of vibrations.
HIGH CONFIGURABLE FOR ALL PRODUCTION REQUIREMENT
Up to 18 vertical and horizontal machining head supports.
ALL DRILLING NEEDS COVERED IN A SIGLE STEP
Drilling heads available with any geometry.
| Mix./max. working area X axis | mm | 230/3200 |
| Mix./max. working area Y axis | mm | 150/800 |
| Mix./max. working area Z axis | mm | 10/70 |
| Vertical drilling spindles motor power | kW | 3 |
| Horizontal drilling spindle motor power | kW | 1,2 |
| Blade unit motor power | kW | 1,5 |
| Electrospindle motor power | kW | 6,6 |
